Compact structure with a minimum working width of 1.8 meters, specially engineered for tunnels and confined mining environments.
Key components are made of high-strength manganese steel, improving wear resistance by 30% and reducing maintenance frequency by 40%.
Technical Specifications & Component Configuration

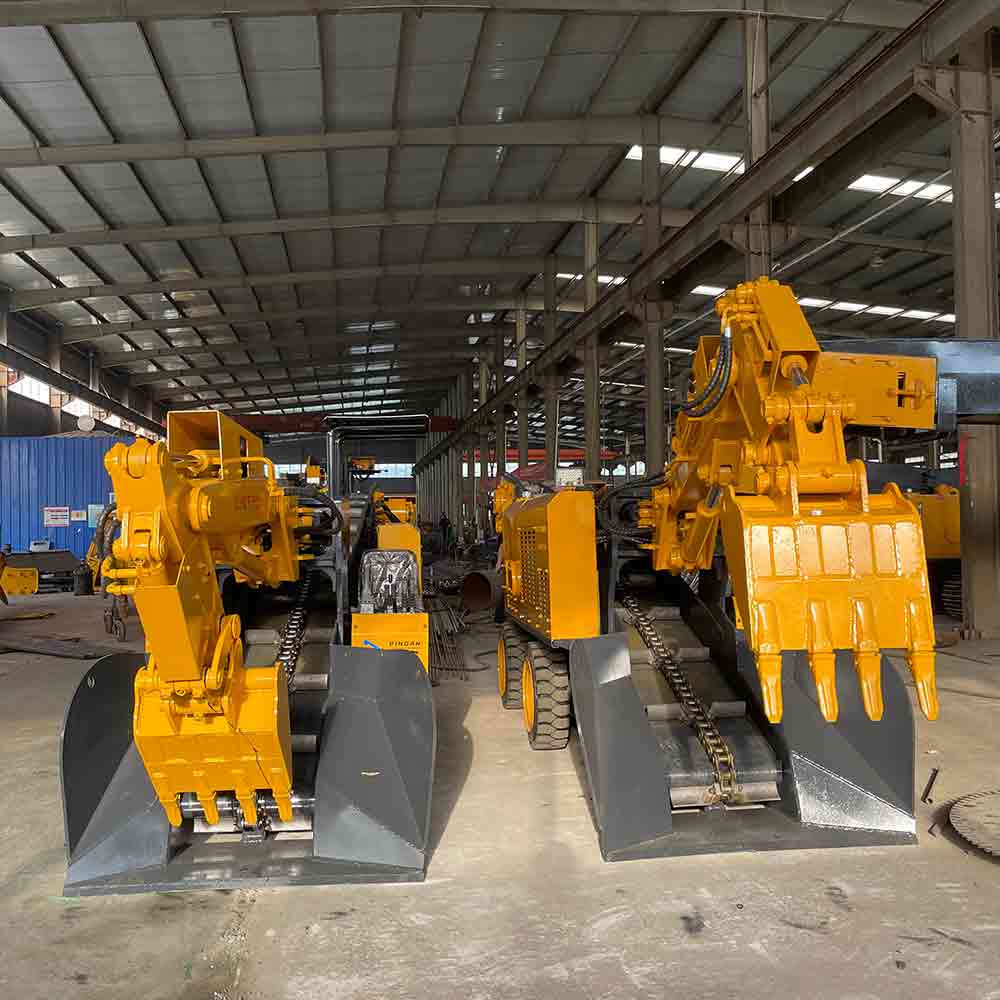

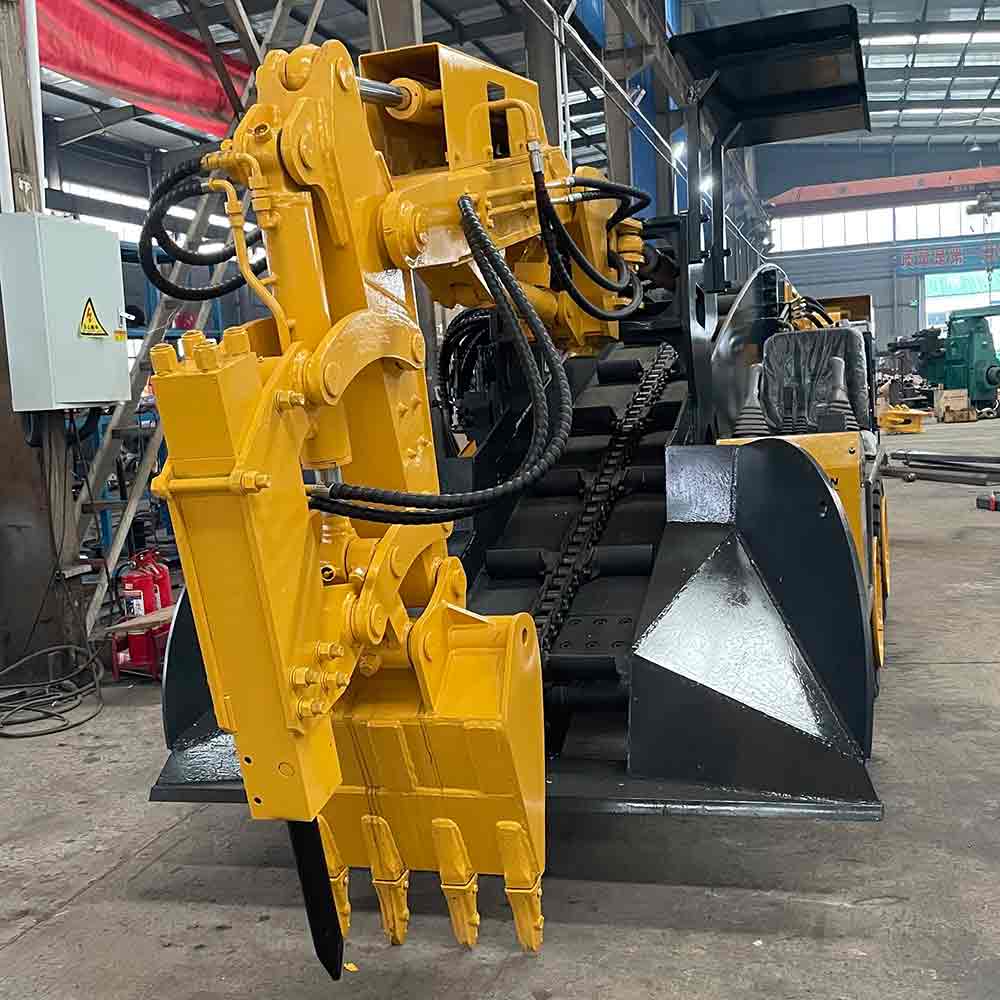

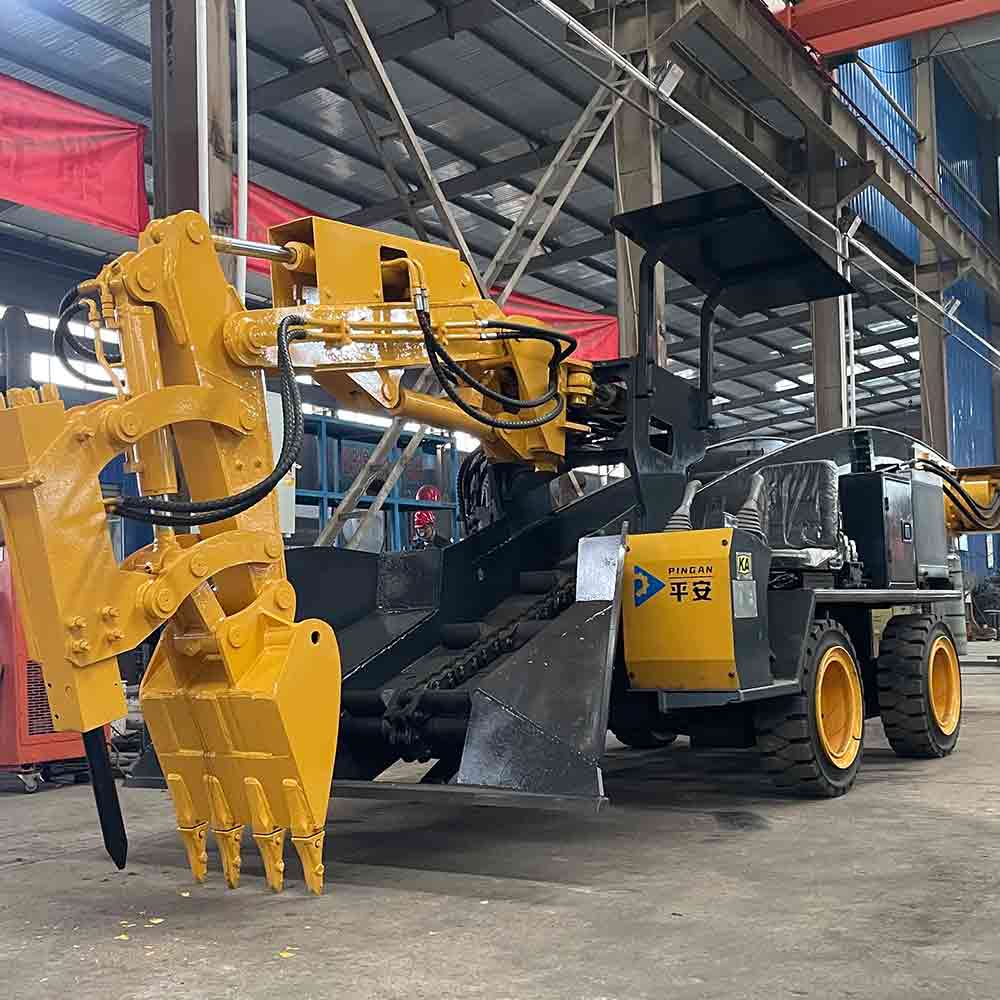

The Type 60 wheel mucking loader is a compact, high-efficiency machine designed for tight job sites. Featuring a four-wheel drive system, it delivers excellent traction and maneuverability while covering a wide operational area, effectively handling all rocks and debris without the need for manual intervention.
Its advanced hydraulic system ensures efficient energy use while maintaining powerful performance, and the chain-based conveyor system replaces traditional belt conveyors to enhance material handling reliability. With a modular, compact design and low center of gravity, the loader offers outstanding stability and ease of operation, even in tight spaces, making it an ideal solution for maximizing productivity and operational efficiency.
Total Weight
7,800 kg
Loading Capacity
60 m³/h
Motor Power
30 kW
Max Gradient
≤15°
| NO | Project | Unit | Technical Specifications |
|---|---|---|---|
| 1 | Total weight | kg | 7800 |
| 2 | Loading capacity | m³/h | 60 |
| 3 | Excavation width | mm | 4200 |
| 4 | Digging distance (from bucket mouth) | mm | 1600 |
| 5 | Excavation height | mm | 1800-2700 |
| 6 | Excavation depth | mm | 450 |
| 7 | Unladen height | mm | 1300-1600 (Variable) |
| 8 | Unladen distance | mm | 1600 (Variable) |
| 9 | Travel speed | m/s | 2/4.5 |
| 10 | Scraper chain speed | m/min | 40 |
| 11 | Type of scraper chain conveying mechanism | – | Single chain single drive; double chain double drive |
| 12 | Applicable way gradient | (°) | ≤15 |
| 13 | Minimum turning radius | m | <5 |
| 14 | Rated working pressure | MPa | 20 |
| 15 | Ground pressure | MPa | ≤0.1 |
| 16 | Ground clearance | mm | 200 (Can be raised) |
| 17 | Motor power | kW | 30 |
| 18 | Method of operation | – | Fluid control |
| 19 | Width of track inside | mm | 900 |
| 20 | Maximum material (length×width×height) | mm | 680×580×500 |
| 21 | Maximum slewing angle of the boom | (°) | ±50 |
| 22 | Dimensions (transport condition) | L×W×H mm | 5800×1650×1750 |
We provide customized crushing, excavation, conveying and slag removal solutions to help customers improve operating efficiency by 10%-25% and reduce labor and maintenance costs by 30%-40%.
Whether you are looking for equipment quotation, technical consultation, or distributor cooperation, our engineers and sales managers are ready to assist you.
Yes, our equipment is specially designed for confined mining environments. The minimum operating width can reach 1.8 meters, making it suitable for over 95% of narrow tunnel applications.
We provide a 24-month warranty for core components and lifetime technical support. Spare parts can be shipped within 72 hours for international customers.
Yes. We offer OEM/ODM services including color customization, voltage configuration, language interface, and branding logo printing, especially for dealers and distributors.
We support remote technical guidance, video tutorials, online engineer diagnostic service, and on-site service via our partner network in key regions such as Africa, Southeast Asia, and South America.
Standard models can be shipped within 15–20 working days. Customized orders or batch orders will be scheduled according to production capacity but usually shipped within 30–35 days.
You can apply by sending your company profile and target market information. We offer exclusive regional authorization, marketing materials, technical training, and price protection policies for official partners.
