If you manage or operate an underground coal mining site, you know how challenging it is to balance productivity, safety, and operational costs. Selecting the right machinery can make or break your efficiency. One piece of equipment that has transformed the industry is the mine-used crawler tunnel milling roadheader. Designed for both underground and open-pit coal mining, this equipment offers integrated mining and loading capabilities that drastically improve efficiency and safety.
In this article, we’ll explore how this machinery works, why it’s essential for modern mining operations, real-world applications, operational best practices, and answers to the most common questions you might have.

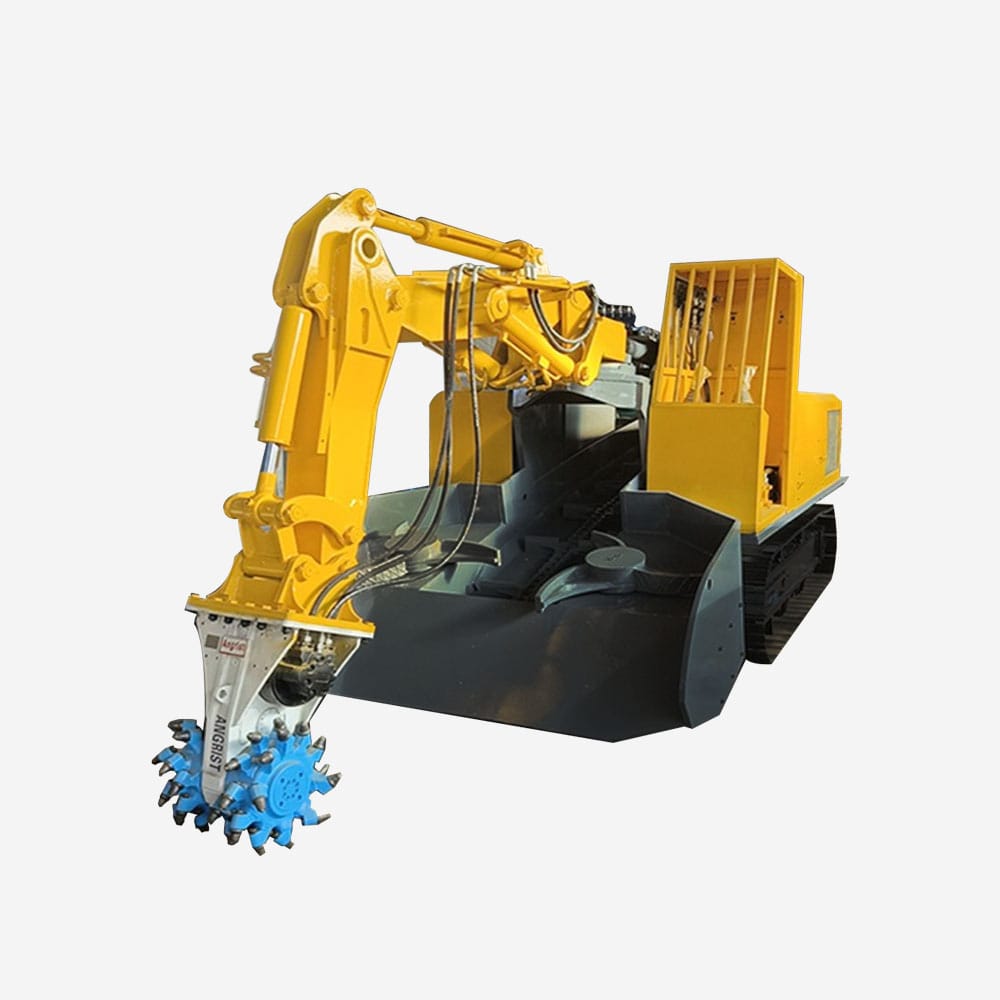

Understanding the Mine-Used Crawler Tunnel Milling Roadheader
The Mine-Used Crawler Tunnel Milling Roadheader, developed by PingAn Machinery, is engineered specifically for coal mining enterprises. Unlike traditional methods involving drilling, blasting, excavation, and loading, this equipment integrates mining and loading into one seamless operation.
Key advantages include
- Continuous coal extraction without blasting
- Reduction in dust and noise pollution
- Lower labor requirements and skill barriers
- Significantly higher operational efficiency
Moving from conventional blast mining to continuous mining systems can increase output by over 40% while reducing operational hazards.
Core Components and Features
High-Torque Continuous Mining Drum
The most critical component is the transverse milling drum mounted at the front of the boom. Its surface features spiral-arranged tungsten carbide teeth that can cut coal seams with a Mohs hardness of less than 4F without blasting.
Traditional coal mining involves drilling, placing explosives, and waiting for dust to settle before machine excavation—a process that can take around 4 hours per cycle. In contrast, the milling drum provides:
- Torque of 8700–10400 Nm
- Rotational speed of 80 rpm
- Effective coal layer penetration of 300 mm per cut
This allows mining at rates of up to 80 m³ per hour, effectively doubling the productivity compared to conventional methods.
Robust Boom and Base Support
The mining head weighs 820 kg. To ensure stability during continuous operation, PingAn Machinery reinforced the steel plates, welding, and hydraulic systems, creating a stable and durable platform.
Crawler-Based Mobility

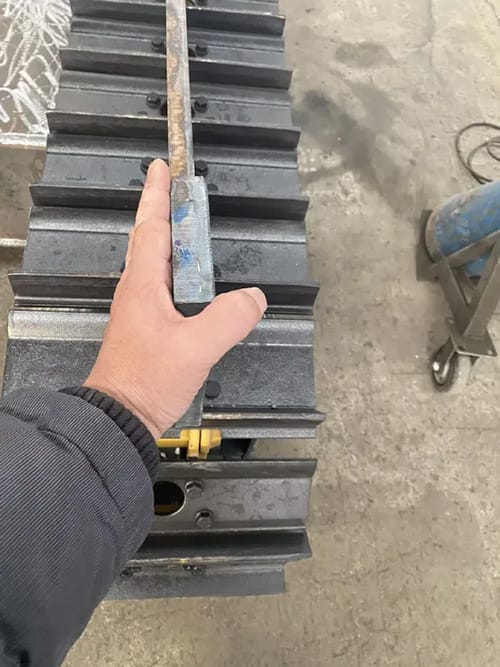

The roadheader uses a heavy-duty crawler system enhanced with thick steel plates forming wide boxes connecting both tracks. With a ground clearance of just 200 mm, the machine achieves unparalleled stability in confined spaces.
Front Excavation System
The hydraulic-driven, high-strength alloy cutting head is the core of this machine. It can:
- Rotate, extend, and turn laterally
- Maintain consistent hydraulic power for variable coal hardness
- Cover a wide operational range with minimal blind spots
Loading and Conveying System
Coal removed by the cutting head is collected in a large U-shaped hopper, then transported via a 6-meter-long conveyor belt, seamlessly integrating mining and loading operations. This design reduces coal spillage and ensures smooth transfer to conveyors or mine cars.
Maneuverability and Terrain Adaptation
The crawler system provides:
- Full terrain capability for wet, muddy, or uneven underground surfaces
- Strong climbing ability on slopes up to 32°
- Reliable stability in tight and irregular tunnels
Integrated Power and Control System
The roadheader features a highly integrated hydraulic system powering all major operations:
- Cutting head rotation
- Boom articulation
- Conveyor operation
Advantages include simplified operation, lower maintenance due to fewer valves, and higher reliability. Operators can focus on extraction rather than complex control sequences.
Case Study: Underground Coal Seam Optimization
Background:
A mid-sized underground coal mine struggled with low extraction efficiency and high labor costs. The tunnels were narrow, limiting conventional loader and blasting operations.
Solution:
The mine integrated the Mine-Used Crawler Tunnel Milling Roadheader for continuous extraction.
Results Over 6 Months:
| Metric | Before Roadheader | After Roadheader | Improvement |
|---|---|---|---|
| Daily Coal Production (m³) | 120 | 400 | +233% |
| Labor Requirement | 12 operators | 5 operators | −58% |
| Average Extraction Time per Cycle | 4 hours | 1.5 hours | −63% |
| Safety Incidents per Quarter | 6 | 1 | −83% |
This demonstrates that switching to continuous mining with integrated loading significantly boosts productivity while reducing operational risks.
Operational Best Practices
- Cycle Planning: Schedule machine movement and conveyor integration for continuous operation.
- Preventive Maintenance: Check hydraulics, conveyor rollers, and milling teeth daily.
- Safety Checks: Verify emergency stops, track integrity, and ventilation compatibility.
- Operator Training: Focus on hydraulic control, cutting strategies, and coordinated conveyor operation.
For more tips on underground mining safety, see Mine Safety and Health Administration.
Comparison Table: Conventional vs Roadheader Mining
| Feature | Conventional Blast Mining | Mine-Used Crawler Tunnel Milling Roadheader |
|---|---|---|
| Mining Method | Drilling & Blasting | Continuous Milling |
| Average Extraction Rate | 40 m³/hr | 80 m³/hr |
| Labor Required | High | Moderate |
| Safety Risk | High | Lower (No Blasting) |
| Dust & Noise | High | Reduced |
| Operational Complexity | High | Simplified Hydraulic Control |
Conclusion
The mine-used crawler tunnel milling roadheader is more than just a machine—it’s a comprehensive solution for modern coal mining. By integrating continuous extraction, loading, and transportation, it dramatically improves productivity, reduces labor, enhances safety, and optimizes tunnel space.
If you want to modernize your mining operations and achieve measurable results, contact our experts at pinganmachinery for a tailored consultation. Don’t wait—upgrade your mining efficiency today.
FAQ
What is a mine-used crawler tunnel milling roadheader used for?
It is designed for continuous coal extraction and loading, replacing traditional drilling and blasting operations.
Can it operate in narrow underground tunnels?
Yes, the crawler and compact design allows efficient operation in confined spaces.
How much coal can it extract per hour?
Average extraction reaches 80 m³ per hour, depending on coal seam conditions.
Does it improve mine safety?
Absolutely. No blasting reduces explosion risks and minimizes dust exposure.
What maintenance is required?
Daily inspections and periodic hydraulic and conveyor checks are recommended to maintain optimal performance.
Can it integrate with existing conveyors or mine cars?
Yes, the roadheader’s conveyor system can connect directly to downstream material handling systems.
.
